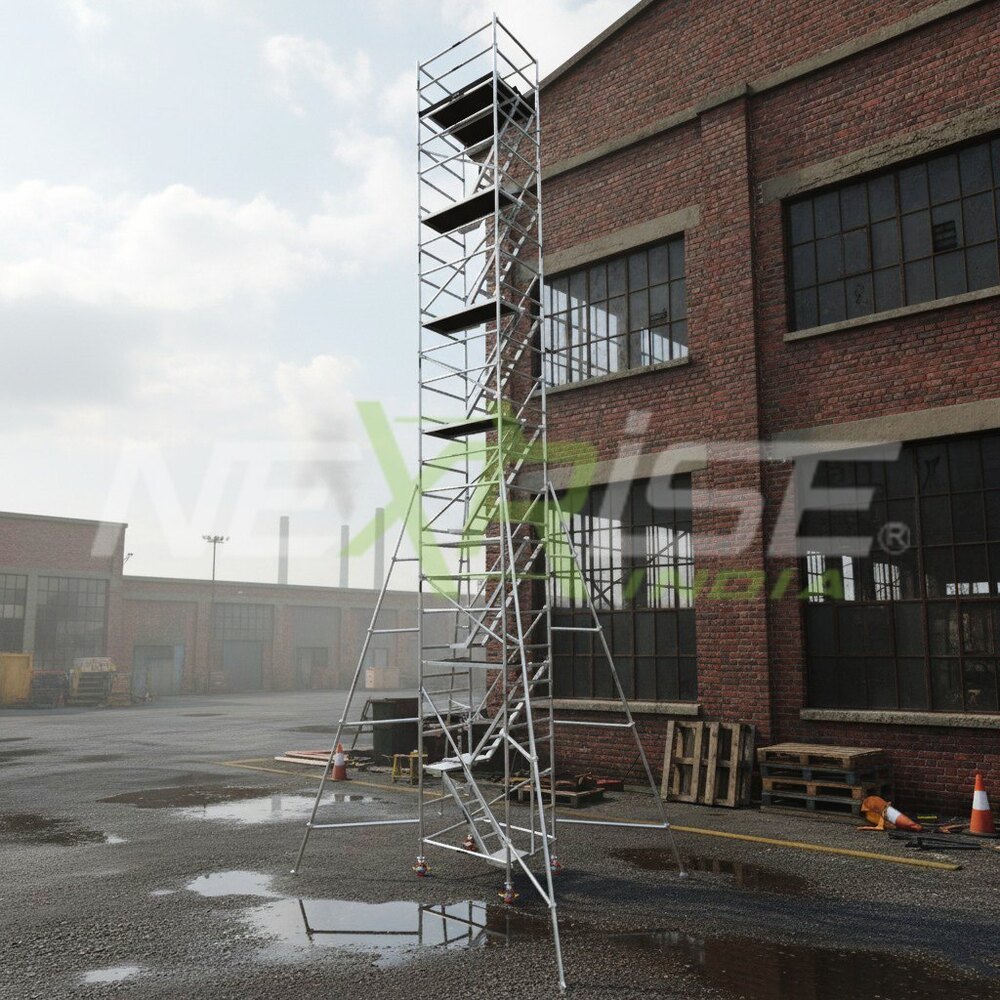

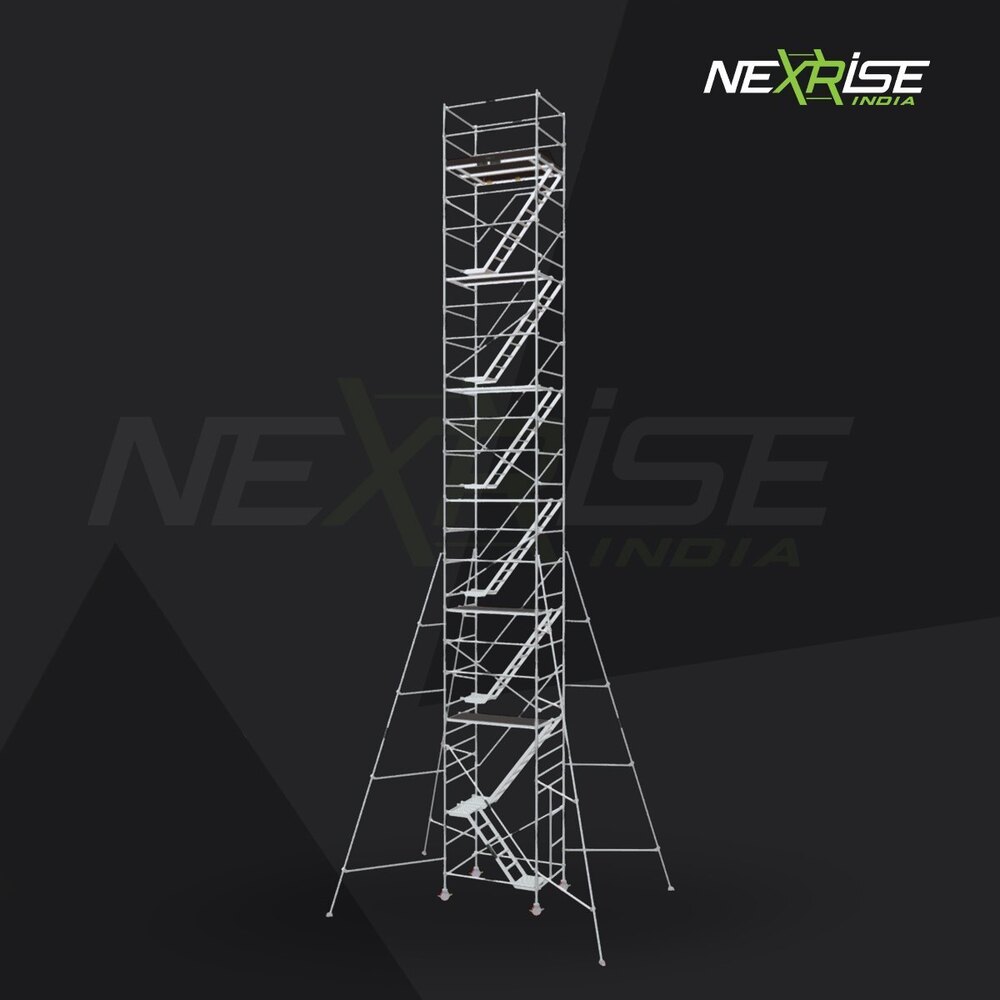

Send Inquiry14.2m Scaffolding 4R Stairway Version
Price 247250 INR/ Piece
MOQ : 1 Piece
14.2m Scaffolding 4R Stairway Version Specification
- Technique
- Hot-dip Galvanized Welding
- Weight
- Approx. 390 kg (full assembly)
- Sleeve size
- External 48.6 mm coupler sleeve
- Pin
- Lock Pin & Spring Clip for safety
- Prop Head
- Universal U-Head/J-Head compatible
- Features
- Non-slip stair treads, Adjustable base jacks, Tool-free assembly, Stability with outriggers, Safety guardrails
- Color
- Silver (standard galvanized finish)
- Constitute
- Prefabricated Modular System
- Product Type
- Scaffolding 4R Stairway Version
- Material
- High-tensile steel (Q235/Q345)
- Components
- Frames, Platforms, Diagonal Braces, Stairways, Guardrails, Toe Boards, Base Jacks, Casters, Connectors
- Diameter
- 48.3 mm (main scaffold tube)
- Width
- 1.45 m (approximate stairway width)
- Length
- 2.50 m (platform length)
- Height
- 14.2 m (tower height)
- Thickness
- 2.5 mm (scaffold tube wall thickness)
- Platform Loading Capacity
- 250 kg/m2 (uniformly distributed)
- Surface Treatment
- Hot-dip Galvanized for corrosion resistance
- Application
- Construction, Maintenance, Industrial Access
- Size
- 14.2 m height x 2.5 m length x 1.45 m width (assembled dimensions)
- Caster Wheel Size
- 200 mm diameter with locking mechanism
- Stairway Angle
- Approx. 45 degrees for safe ascent/descent
- Wind Load Resistance
- Certified as per EN 1004 standard
- Number of Stair Flights
- 8 stair flights per 14.2m tower
- Handrail Height
- 1.0 m above each stairway and platform
- Maximum Free Standing Height
- 10.2 m (beyond this, wall tie recommended)
- Platform Material
- Anti-slip plywood deck with steel reinforcement
- Storage/Transport
- Modular parts for convenient stacking and handling
- Connection System
- Self-locking frame-to-frame couplers
- Operating Temperature Range
- -30C to +60C
- Base Jack Adjustment
- Up to 600 mm adjustable range
14.2m Scaffolding 4R Stairway Version Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Aluminum Scaffolding Category
12.2m Aluminium Scaffolding Stairway Version
Price 225000 INR / Piece
Minimum Order Quantity : 1 Piece
Constitute : other, Modular/Detachable
Product Type : Other, Aluminium Scaffolding Stairway Tower
Surface Treatment : Other, Anodized Finish
5.2m Aluminium Scaffolding Stairway Version
Price 103270 INR / Piece
Minimum Order Quantity : 1 Piece
Constitute : other, Modular elements for easy assembly
Product Type : Other, Aluminium Scaffolding Stairway Tower
Surface Treatment : Other, Anodized or powdercoated finish

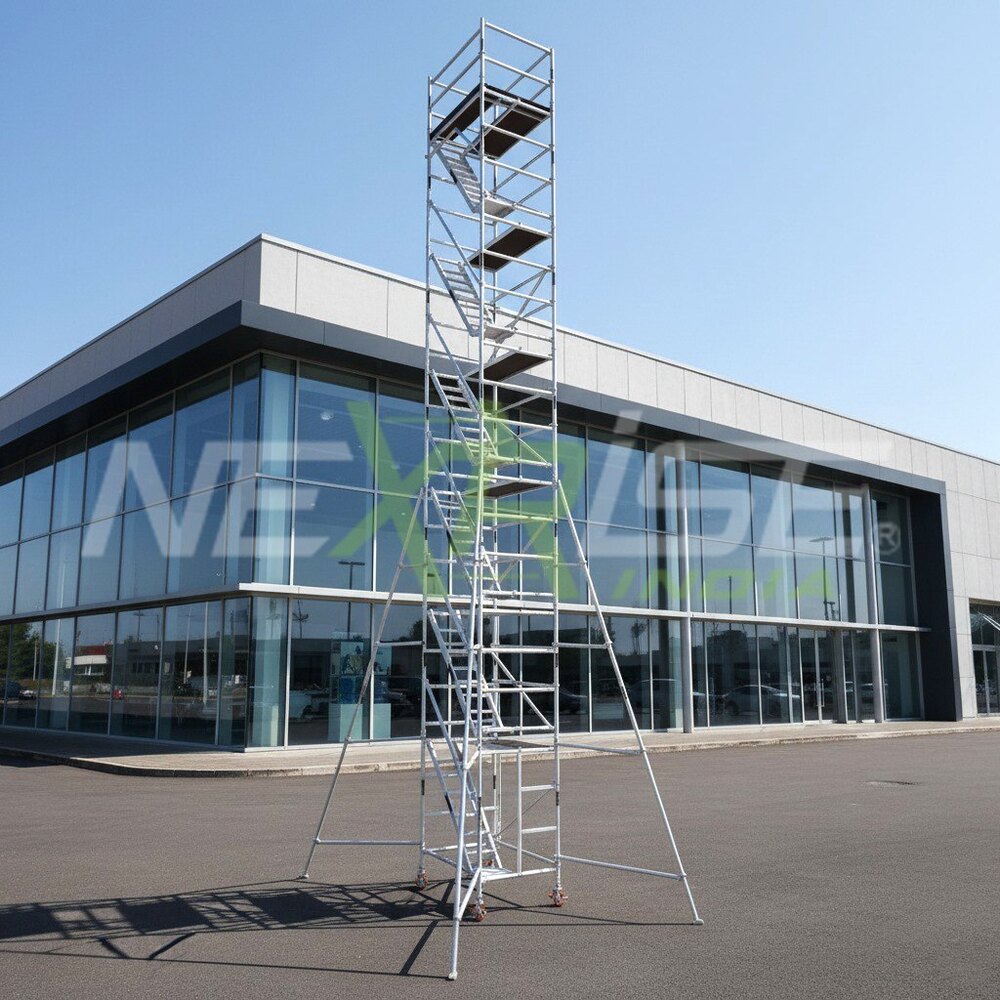

13.2m Scaffolding 4R Stairway Version
