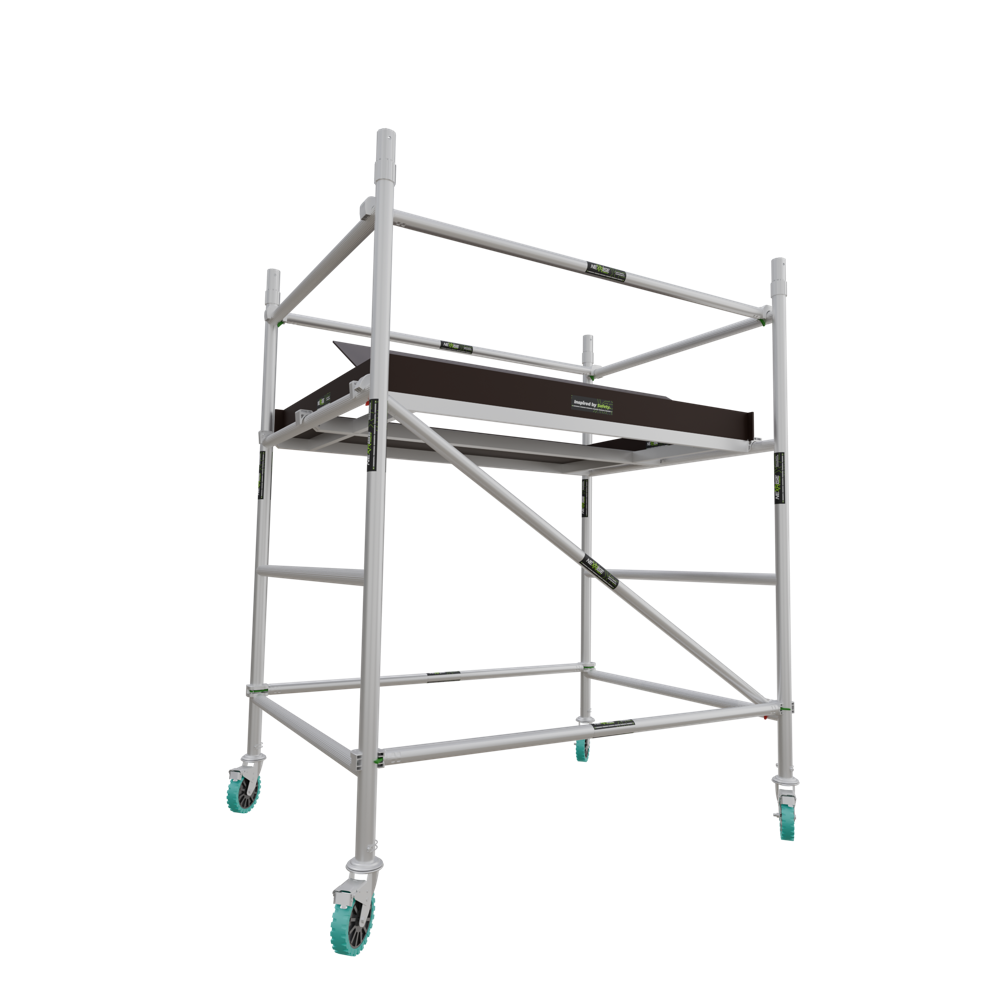

2.2m Aluminium Scaffolding 4R Stairway Version
2.2m Aluminium Scaffolding 4R Stairway Version
2.2m Aluminium Scaffolding 4R Stairway Version
2.2m Aluminium Scaffolding 4R Stairway Version

2.2m Aluminium Scaffolding 4R Stairway Version

Price 41170 INR/ Piece

MOQ : 1 Piece

2.2m Aluminium Scaffolding 4R Stairway Version Specification

  • Sleeve size
  • 60 mm (connection sleeve diameter)
  • Weight
  • Approx. 82 kg (total set)
  • Pin
  • Spring Locking Pins for Frame Connections
  • Technique
  • Welded Aluminium Structure
  • Features
  • Rust-proof, Lightweight, Portable, Non-slip Stairway Treads, Swiveling Brakes, Easy Assembly
  • Color
  • Silver (natural aluminium finish) with safety yellow components
  • Constitute
  • Modular, Foldable Stairway Assembly
  • Product Type
  • Aluminium Scaffolding 4R Stairway Version
  • Material
  • High-strength Aluminium Alloy 6061-T6
  • Components
  • Platform, Guard Rails, Toe Boards, Diagonal Braces, Horizontal Braces, Stairway, Base Frames, Swivel Castor Wheels (4R)
  • Diameter
  • 50.8 mm (main tube)
  • Width
  • 1.35 m
  • Length
  • 2.2 m
  • Height
  • 2.2 m (tower standing height, adjustable)
  • Thickness
  • 2.2 mm (tube wall thickness)
  • Platform Loading Capacity
  • 275 kg (Uniformly Distributed Load)
  • Surface Treatment
  • Anodized Anti-corrosion Coating
  • Application
  • Commercial, Industrial, Construction, and Maintenance on Stairways and Uneven Surfaces
  • Size
  • 2.2 m x 1.35 m (L x W)
  • Wheel Diameter
  • 150 mm heavy-duty PU wheels
  • Foldability
  • Yes, quick folding for fast relocation
  • Recommended Users
  • One or two persons at a time
  • Locking Mechanism
  • Double locking system (wheel and platform)
  • Maximum Working Height
  • 5.2 m (with extensions)
  • Stair Angle
  • 50 standard inclination for easy climbing
  • Assembly Time
  • Approx. 15 minutes for two workers
  • Outrigger Availability
  • Compatible, Optional for extra stability
  • Packing Type
  • Compact knock-down packaging for transport
  • Safety Standard
  • Conforms to EN1004/OSHA standards
  • Handrail Presence
  • Integrated aluminium handrails along both sides of stairway


2.2m Aluminium Scaffolding 4R Stairway Version Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days
