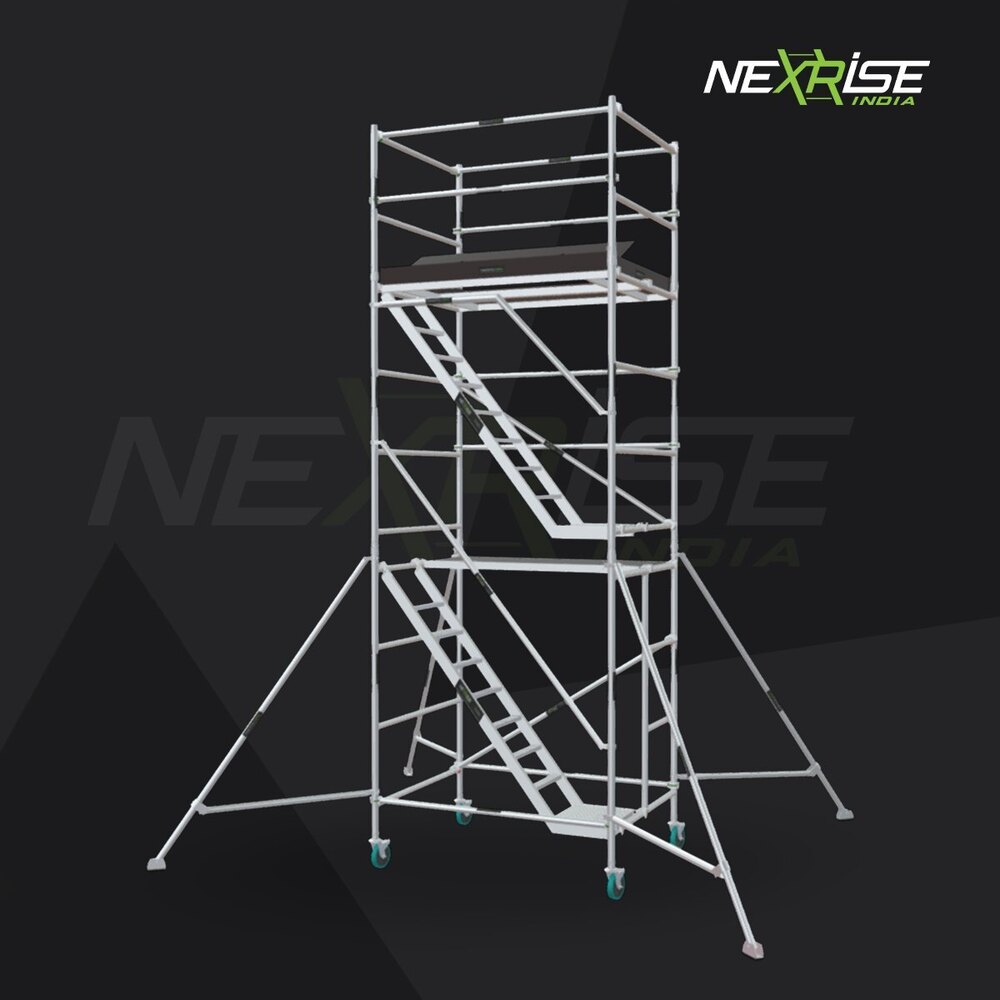

Aluminium Scaffolding 4R Stairway Version

Send Inquiry

Request To Call Back

Aluminium Scaffolding 4R Stairway Version

Get a Price/Quote

MOQ : 1 Piece

Aluminium Scaffolding 4R Stairway Version Specification

Constitute
Fully knock-down modular system

Color
Silver (Natural anodized aluminium)

Sleeve size
51 mm (Sleeve dia for connection)

Features
Stairway access, anti-skid platform, easy assembly, lightweight, rustproof, mobile with 4 wheels, stabilizer legs for additional support

Pin
Sprung locking pin system

Weight
Approx. 120-200 kg depending on working height

Technique
Extruded Aluminium construction

Prop Head
Flat head (stabilized base)

Product Type
Aluminium Scaffolding 4R Stairway Version

Material
High tensile Aluminium alloy (Grade 6061-T6 or equivalent)

Components
Frames, Stairway, Guardrails, Toeboards, Stabilizers, Lockable Castor Wheels, Platforms, Diagonal Braces, Hand Rails, Connecting Pins

Diameter
50.8 mm (main tube)

Width
1350 mm (Scaffold width including frame)

Length
2500 mm (Platform length)

Height
Up to 12 m (tower height as per requirement)

Thickness
2 mm (Aluminium tube wall thickness)

Platform Loading Capacity
225 kg (uniformly distributed load per platform)

Surface Treatment
Anodized finish for corrosion resistance

Application
Access work at heights, maintenance, installation, painting, construction on stairs or uneven surfaces

Size
Standard module 2.5 m x 1.35 m

Compliance
Conforms to EN1004-1:2020 & BS 1139 standards

Maximum Tower Load Capacity
900 kg (overall distributed)

Number of Wheels
4 heavy duty lockable castor wheels

Suitable for
Indoor and outdoor use

Stabilizer Length
Up to 2 m (extendable)

Stairway Inclination
Approx. 45 angle for safe ascent

Platform Material
Aluminium with anti-slip plywood insert

Base Size
2500 mm x 1350 mm

Guardrail Height
1000 mm above platform

Working Platform Height
Adjustable up to tower height

Platform Height Range
From 2 m up to 12 m depending on configuration

Aluminium Scaffolding 4R Stairway Version Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Aluminium Scaffolding 4R Stairway Version

Experience the elite Aluminium Scaffolding 4R Stairway Version-an enviable solution for accessing elevated and challenging spaces. With limited time, limited stock, and meritorious features, this unmatchable system combines lightweight, corrosion-resistant, high-tensile aluminium with a modular knock-down design for easy assembly and transportation. The adjustable stairway, lockable heavy-duty castor wheels, and anti-slip platform ensure safety, stability, and versatility. Designed for professionals, it boasts compliance with EN1004-1:2020 & BS 1139, enviable load capacities (up to 900 kg), and an anodized finish for enduring performance. Seize this opportunity for elite scaffolding excellence!

Versatile Applications and Unmatchable Features

The Aluminium Scaffolding 4R Stairway Version is perfect for a range of applications, including maintenance, installation, construction, painting, and access work on stairs or uneven surfaces. Its enviable features include a 45 stairway inclination for safe ascent, anti-skid platform, rustproof anodized finish, and stabilizer legs for added support. Used by service providers, traders, and wholesalers throughout India, this elite system ensures a meritorious, safe, and efficient work environment-both indoors and outdoors.

FOB Port, Expedient Delivery, and Global Supply

We supply the Aluminium Scaffolding 4R Stairway Version via secure shipping from major Indian FOB ports, ensuring meritorious handling and fast dispatching. Delivery time is optimized for prompt order fulfillment, typically ranging from a few days to two weeks depending on configuration and destination. Our main export markets include Asia, Middle East, and Africa, where the product's elite build and compliance assure unmatchable safety standards. Enjoy hassle-free, secure shipping to your desired location.

FAQ's of Aluminium Scaffolding 4R Stairway Version:

Q: How is the Aluminium Scaffolding 4R Stairway Version assembled and transported?

A: The scaffolding system is fully modular and knock-down, allowing for easy assembly and disassembly. Its lightweight extruded aluminium construction with a sprung locking pin system enables convenient transport and rapid setup at any location.

Q: What safety features does the 4R Stairway Scaffolding offer?

A: This scaffolding boasts a 45-degree inclined stairway for safe ascent, an anti-slip platform, robust guardrails (1000 mm high), and stabilizer legs. All components are manufactured to conform to EN1004-1:2020 and BS 1139 safety standards.

Q: When should I use the Aluminium Scaffolding 4R Stairway Version?

A: This system is ideal for any situation requiring safe, stable access to elevated or uneven surfaces, such as during maintenance, construction, installation, or painting, both indoors and outdoors.

Q: Where can the scaffolding be utilized effectively?

A: It is perfect for stairways, uneven ground, industrial sites, commercial buildings, and residential maintenance tasks, offering flexibility thanks to its adjustable height and modular configuration.

Q: What is the maximum loading capacity of the platform and entire tower?

A: Each platform can safely hold up to 225 kg (uniformly distributed load), while the overall tower supports up to 900 kg, provided the load is evenly distributed.

Q: How does the anodized finish benefit long-term use?

A: The anodized surface treatment provides excellent corrosion resistance, making the scaffolding suitable for outdoor as well as indoor environments and ensuring a longer lifespan.
